Photo Page 1




The 1000 series heads – These amplifiers are the closest to the Fender Showman reverb amplifier. You can see the controls are the same as the Fender. These seem to be the amplifiers that Plush first got into business building.

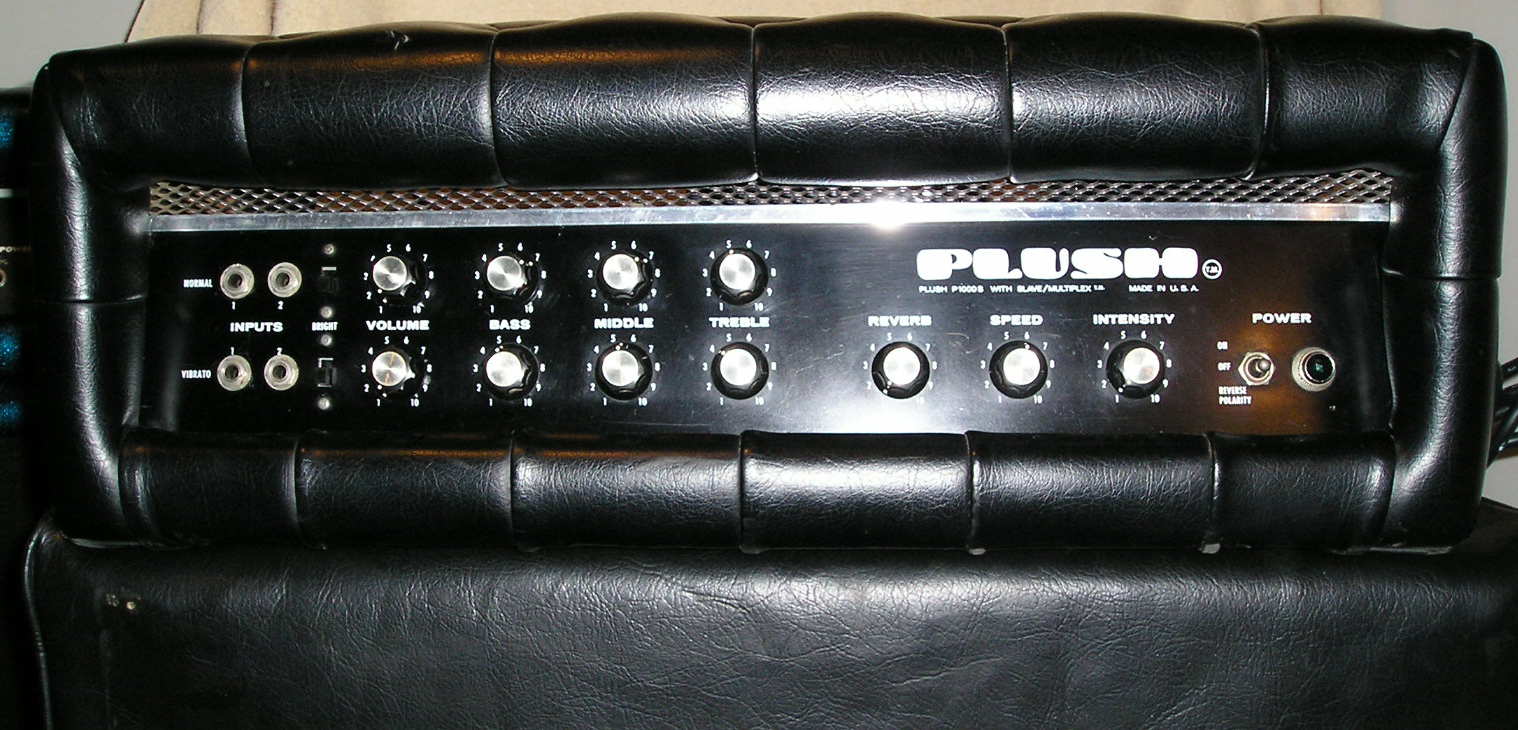

Plush 1000 Front View
The 1000 and the 1060 amplifiers have the small vent area across the top. The 1000 amplifier has the tremolo and reverb which are absent on the 1060 series.

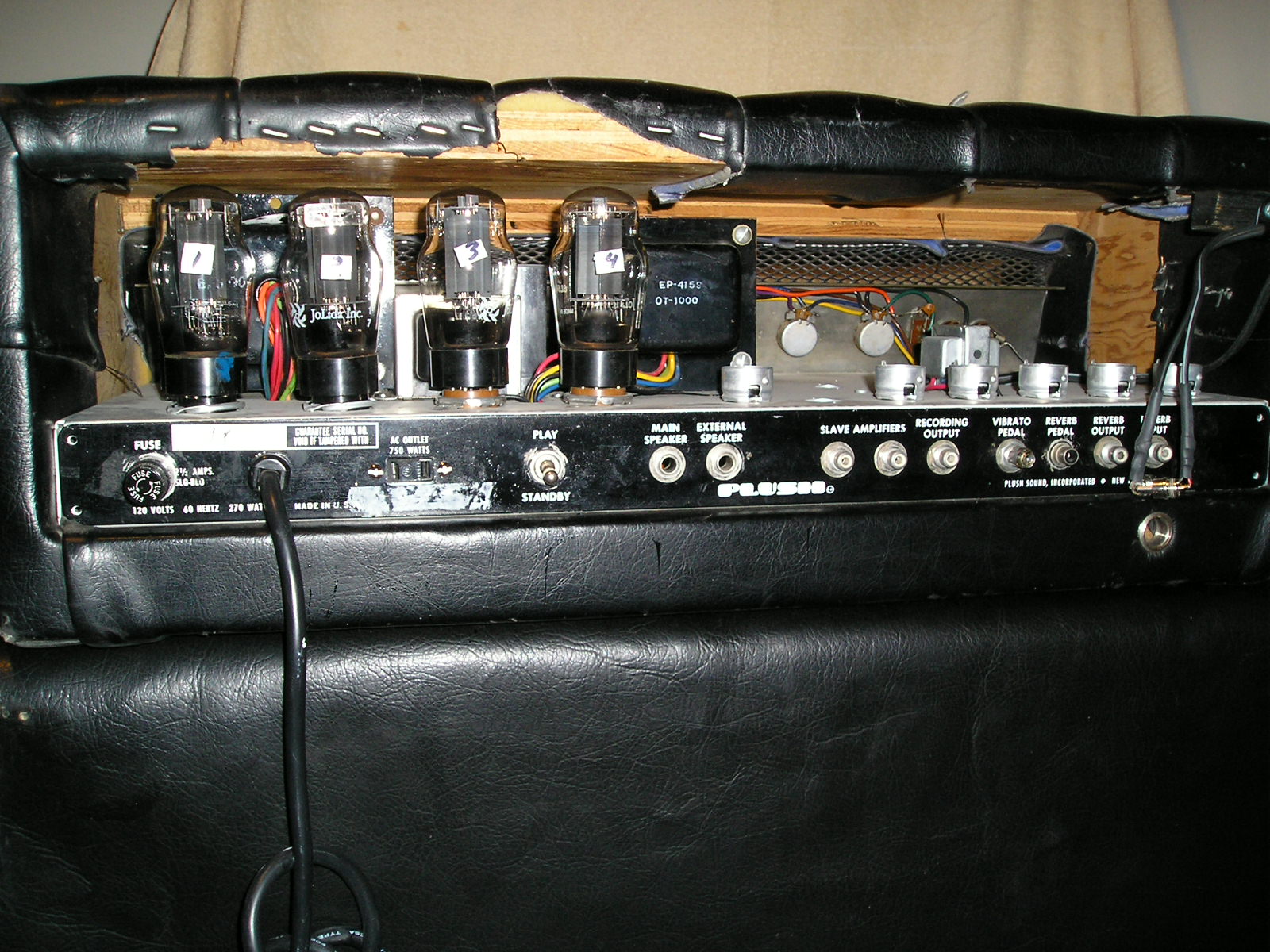

Plush 1000 Rear View
The transformers are Plush stamped and there is a reverb transformer also. The hole in the bottom is where the reverb jacks probably should come out to the reverb tank. This amplifier has the slave multiplexer.

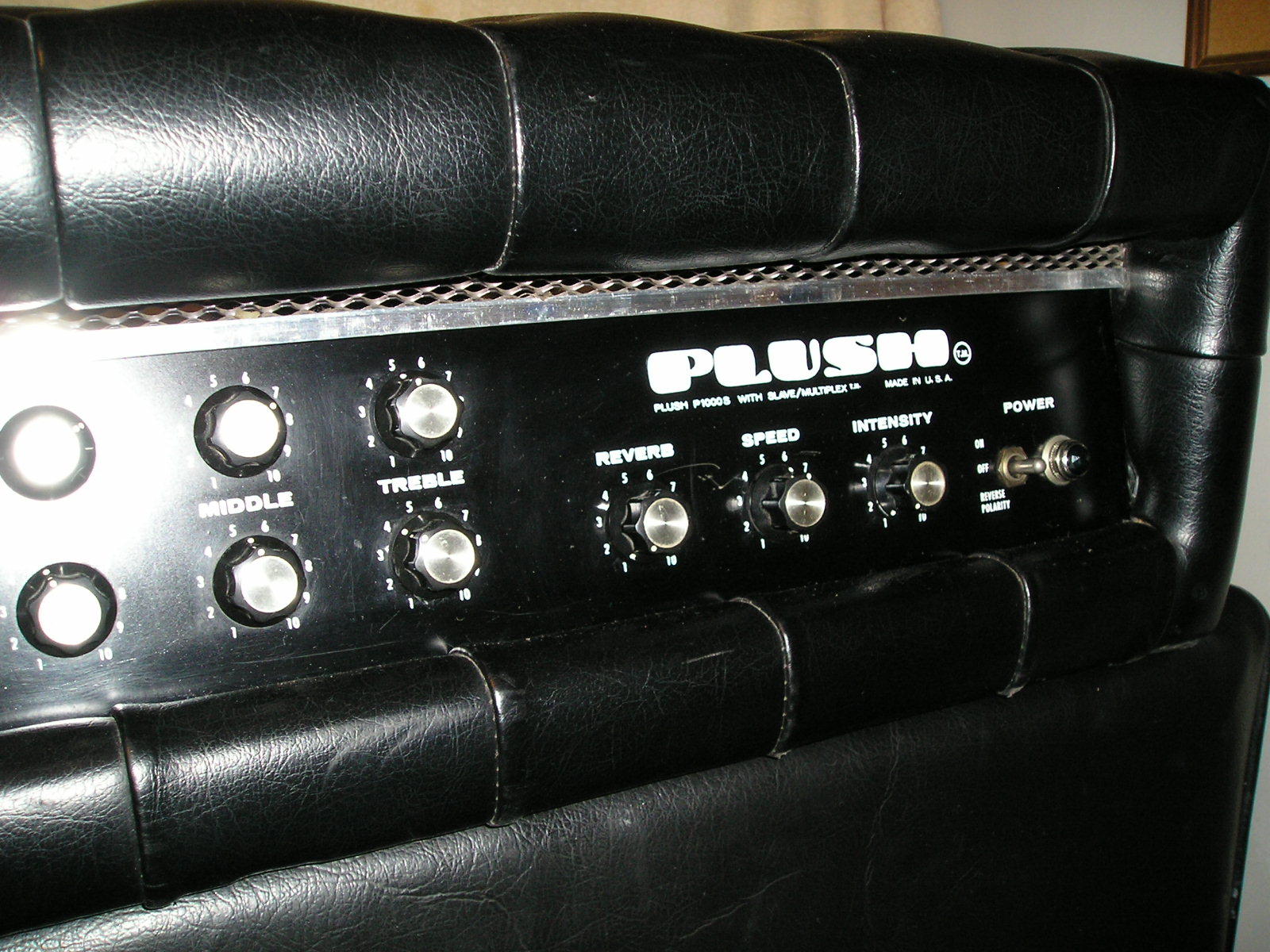

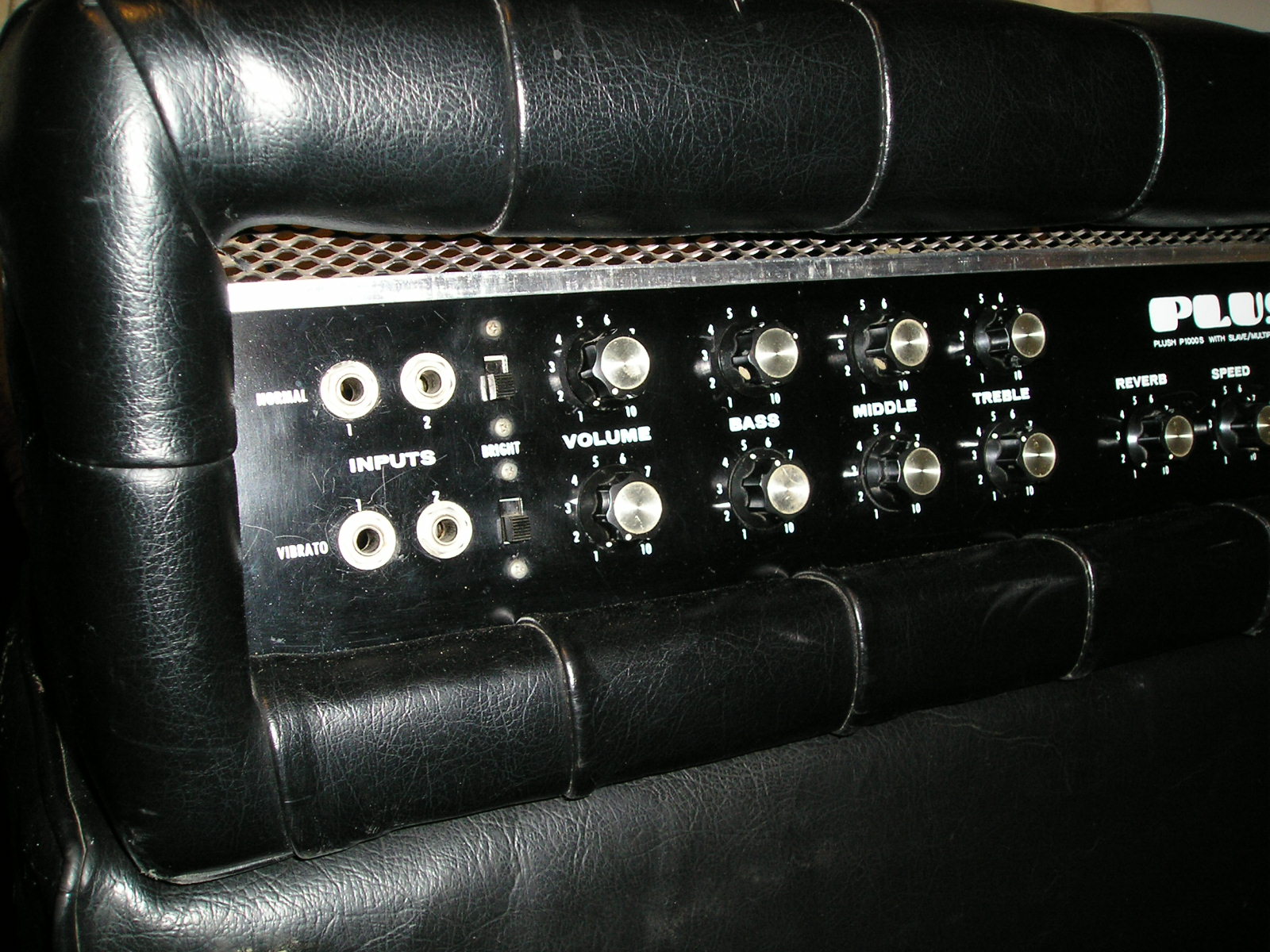

Plush 1000 Control Panel View

The controls are right there with the Fender amps that are similar. There is no standby for this amplifier, just the polarity reverse for the supply. Warning, if you incorrectly switch the amplifier on with the reverse polarity, you can have 120 volts on the chassis.

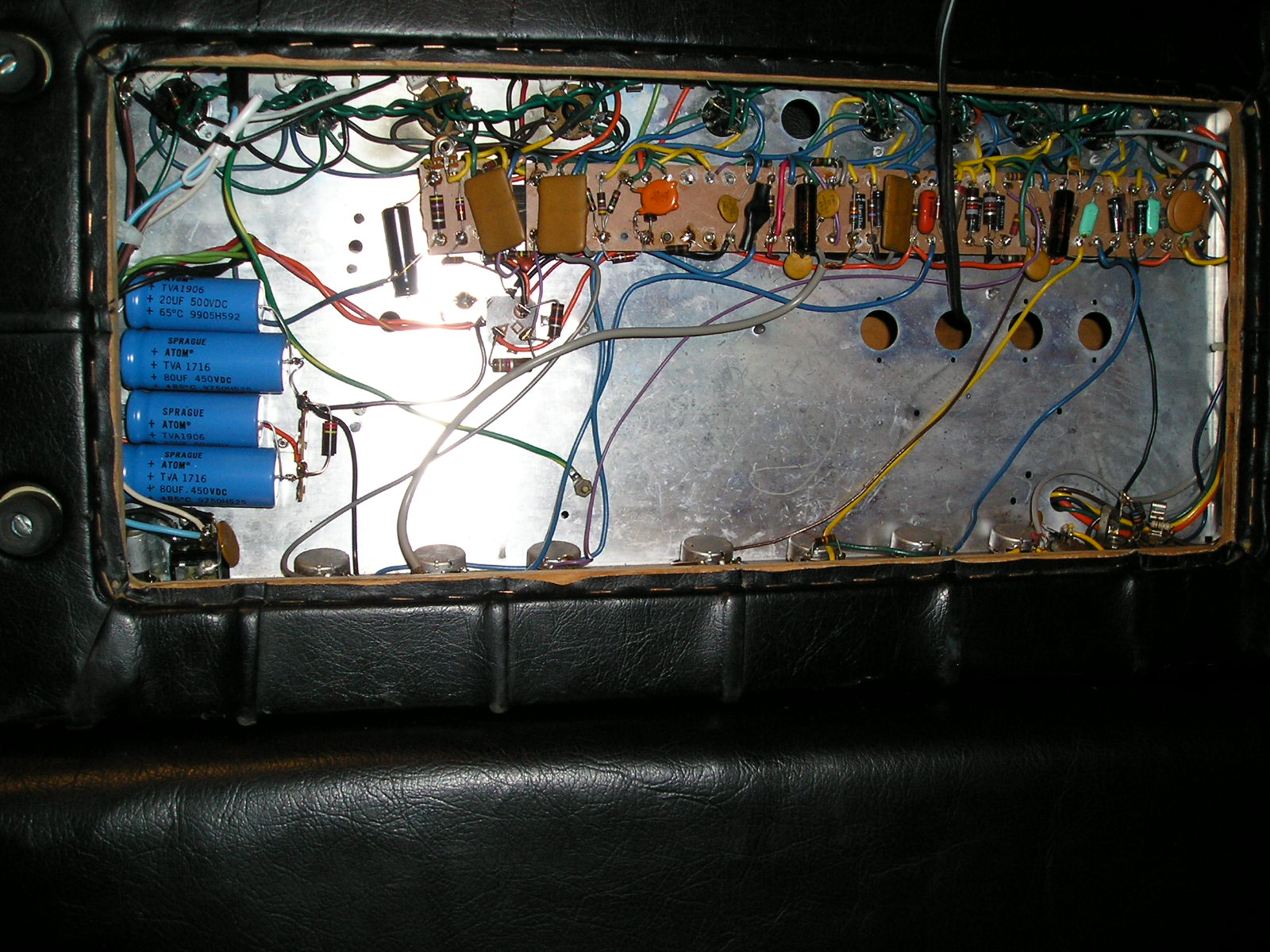

Plush 1000 Chassis Bottom View
This amp has been recapped but otherwise is pretty much original.
